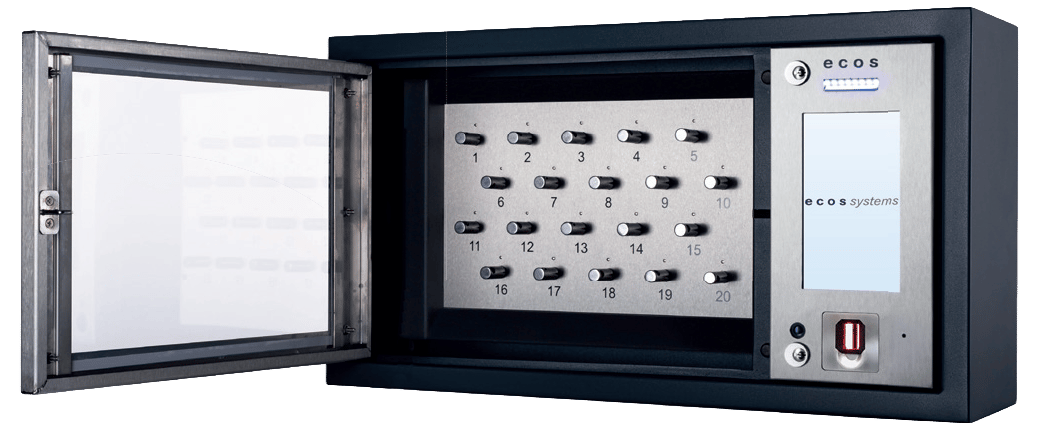

ecos key 20

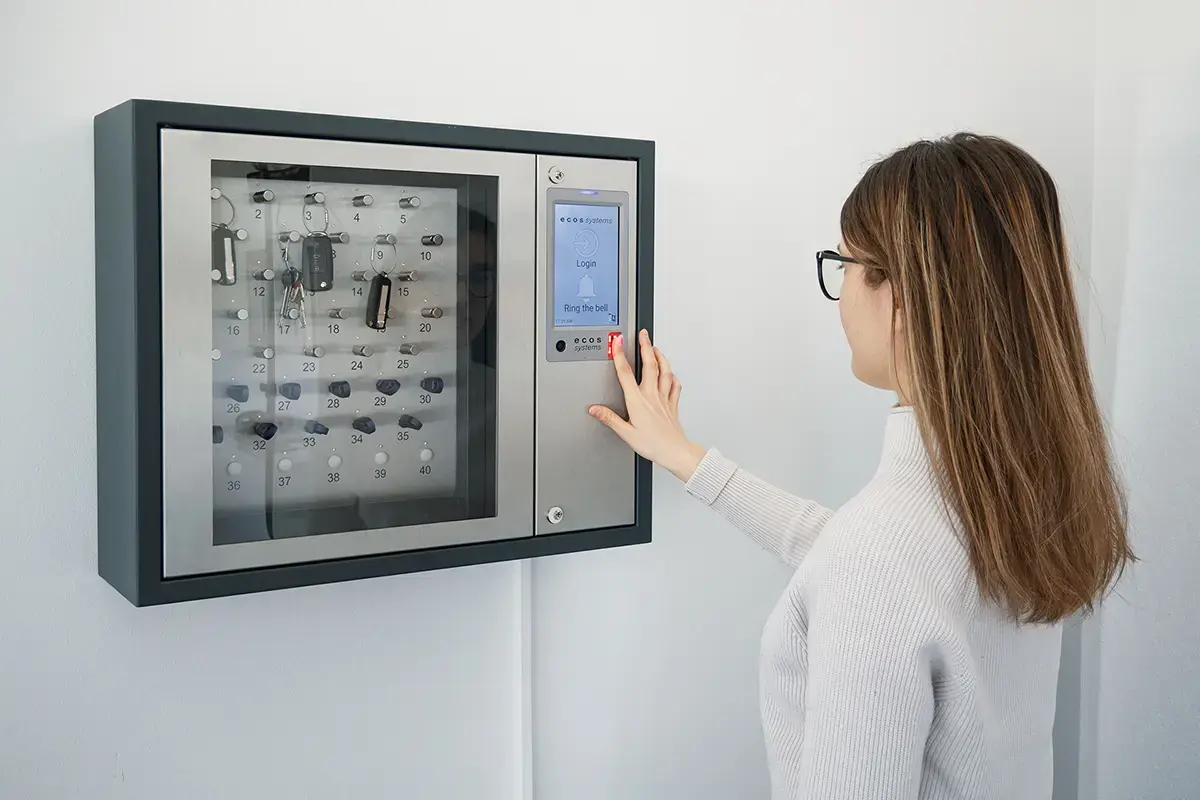

The ecos key 20 is a smart key cabinet that secures your organization‘s keys, electronically manages them, and monitors their access.

Its cutting-edge features, like a high-resolution 7“ color screen and plug-and-play software, make the ecos key cabinet exceptionally user-friendly.

Its fully modular system adapts to your organization‘s needs, accommodating various quantities of keys, access methods and many more.

24/7 key accessiblity by authorized persons

Full history logs with audit trails per keys and users

7“ touch color screen with customizable customer logo

Unibody housing with integrated control unit

Key and user administration at the system

Expandable through slot activation without technician intervention

Battery backup for 24 hours

Emergency release without tools

Easily connectible with ecos locker system

TECHNICAL INFORMATION

Physical properties
Weight	23 kg/51 lbs (fully unlocked) to 25 kg / 55 lbs (fully locked)
Dimensions (WxHxD)	64,5 cm x 35 cm x18 cm / 25.4“ x 14“ x 7.1“
Materials	Stainless steel and powder-coated steel with up to 1,5 cm / 0.6“ thickness
Color	RAL 7016
Capacity	From 5 to 20 keys/key bundles
Operating temperature	-20°C to 50°C / -4°F to 122°F
Outdoor use	Protected outdoor, not suitable for direct rain, analog IP44
Mounting method	Wall-mounted

Electrical properties
Power supply	Input: 100-240 V AC, output: 13.8 V DC
Power consumption	35 W Max.
Battery backup	DC 12 V 7.5 Ah - up to 24 hours

Hardware & platform
Interior depth	10 cm — fits ISO card formats, so RFID access cards can be stored alongside keys
Slot pitch	Variable, 9–20.5 cm; slots can be deactivated to fit oversized keys and large rings
Door options	Solid stainless steel or see-through polycarbonate
Status indicators	Multicolour LED strips signal login, comms, power-fail and camera-fill states
Alarm monitoring	Independent watchdog board raises alarms even if the main board fails
Door security	Per-door alarm contacts with individual IDs; two security locks per door
Operating system	Android-based OS on ARM processors, for frequent feature updates and a familiar UI
Terminal screen	7" standard; 10" and 15" terminals available
Wi-Fi hotspot	Built-in mobile hotspot connects adjacent ecos accessories (e.g. electronic door signs), no separate network drop
Offline mode	Full cabinet operation during a network outage; audit data syncs on reconnect
Reader integration	Works with existing third-party readers via RS232, Wiegand and Data/Clock

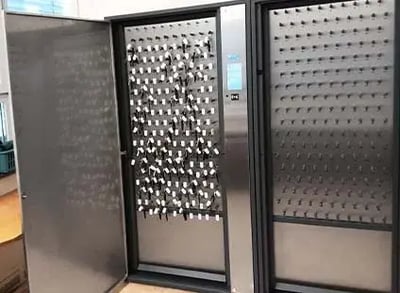

Extension hinge	Left- or right-hand hinge on extension cabinets, when extending beyond the ecos key 20

IT security
Encryption	HTTPS TLSv1.3, AES256, RSA2048bits minimum, internal communication ECC SHA256

Certifications
CE, FCC, CSA, ROHS, ISO9001, ISO27001, ISO14001

TECHNICAL DRAWINGS

OPTIMAL POSITIONING

Installation videoguide

Software connectivity

ecos care (hosted)
Networked
Stand-alone

Access methods

Enhanced security options

Further batteries possible (each 24 hours)
Cold-wire alarms available (4 dry contact relays)

Enhanced usability options

Stop losing track of keys

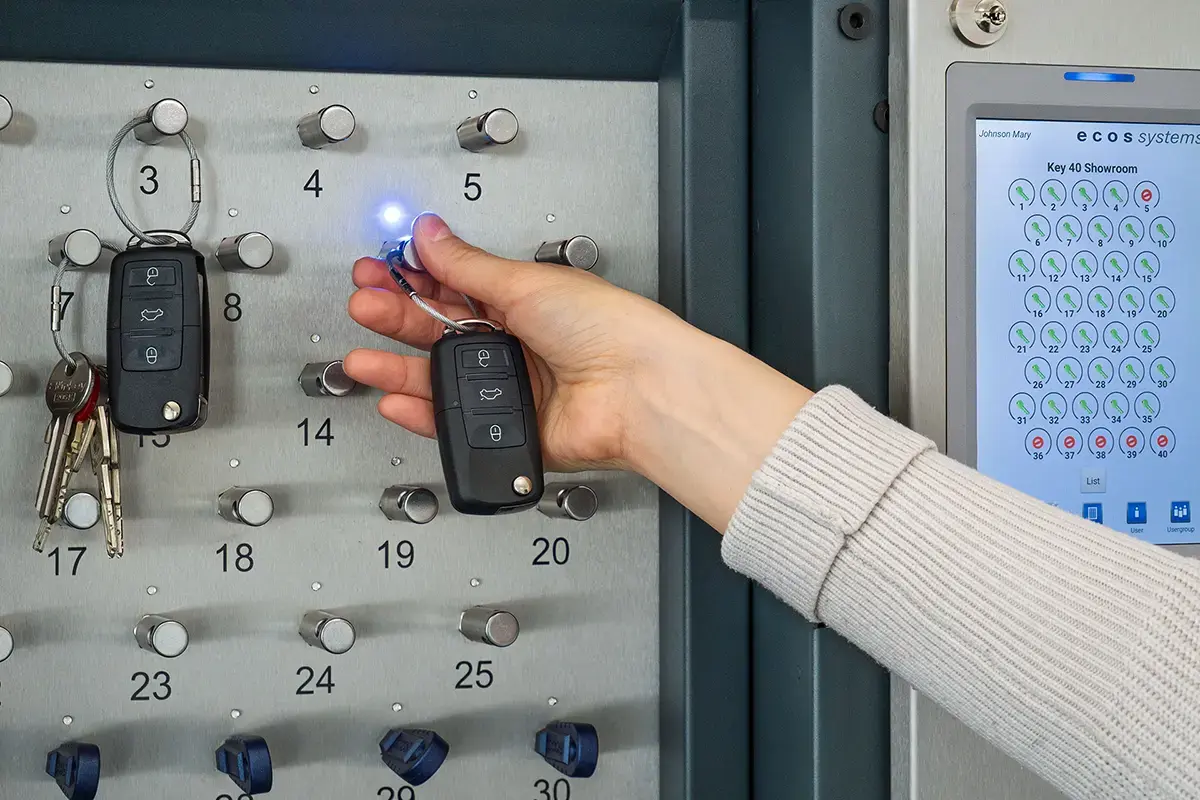

Every issue and return is logged against a named user, with email/push alerts on overdue keys; wrong-key returns are caught the moment they happen.

Match security to each key, not the whole cabinet

Locking or non-locking slots key by key; combine PIN, RFID, biometric, or QR, and require four-eye on high-risk keys.

Run it without dragging IT into the project.

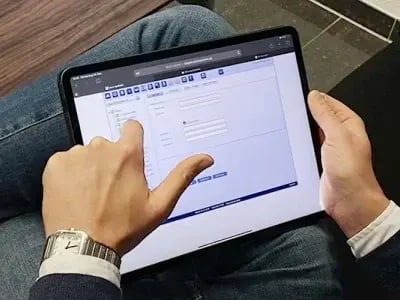

Optional 4G/5G keeps alarms and comms independent of your network; ecos webman, the app, and ecos care handle updates, backups, and 99.9% uptime.

Reserve keys ahead — web, app, Outlook, or at the cabinet.

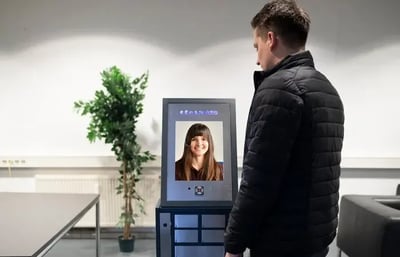

Two-way audio and video — 5 MP camera, mic and speaker; remote release via the app.

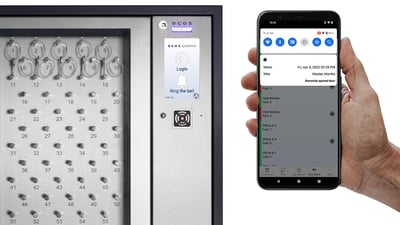

Alerts to the right team — 20+ alarm types, on-site or forwarded to existing panels.

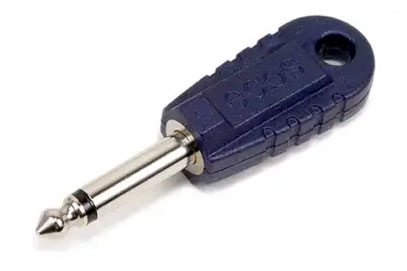

Grow without a forklift upgrade — the ecos key 20 ships fully built; start with as few as 5 active slots and activate more, up to 20, with a licence code and ID-plug. No installer, no downtime.
